Kubernetes

---

Ingress

Intro

• Provides rule based routing
• Requests can be received at a single IP address (NLB's IP) and forwarded to the right service based on the path or subdomain.
  •

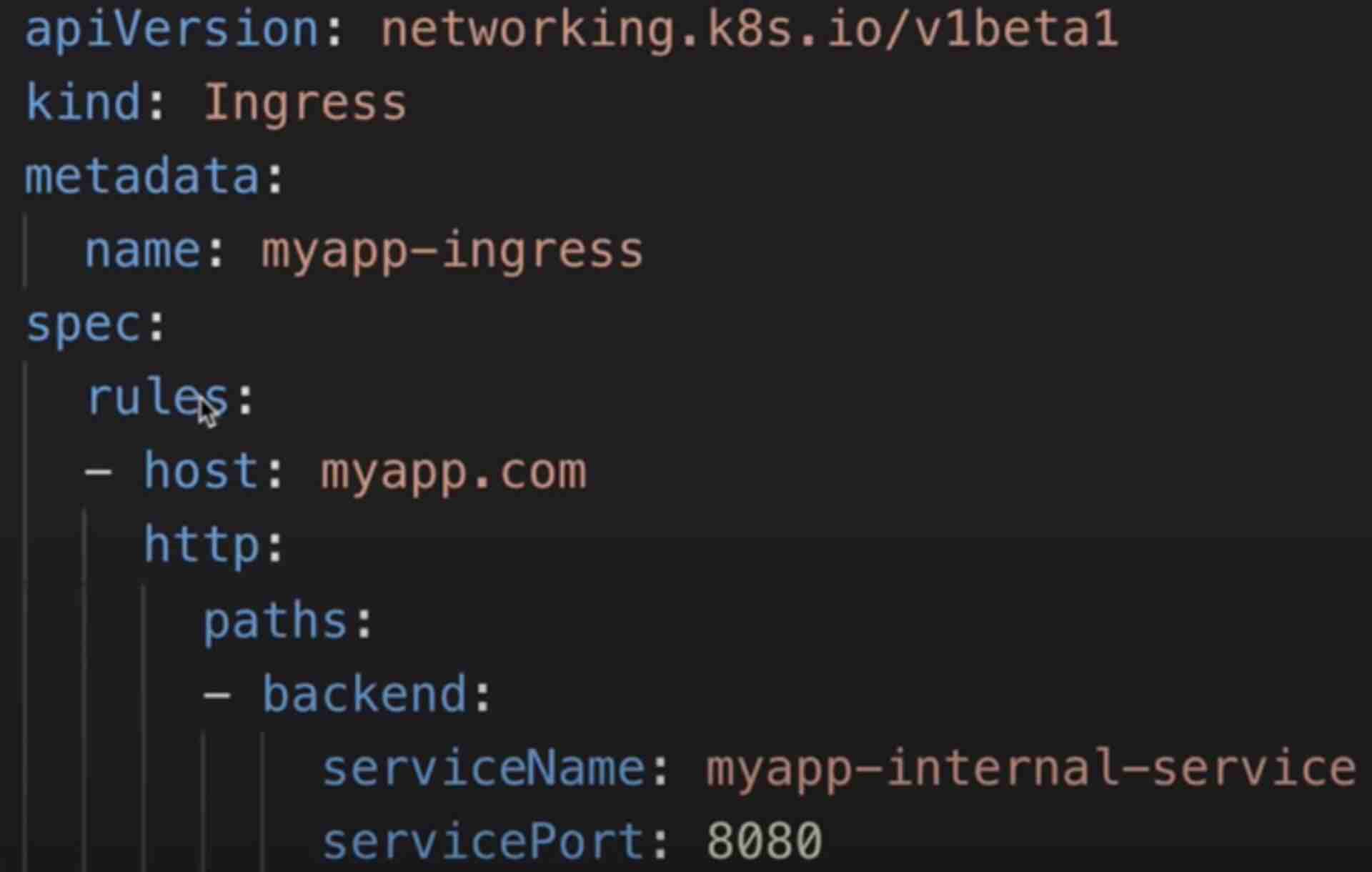

Sample YAML

- Here, we define routing rules for the hostname - Backend is the target where the incoming requests for that hostname will be redirected

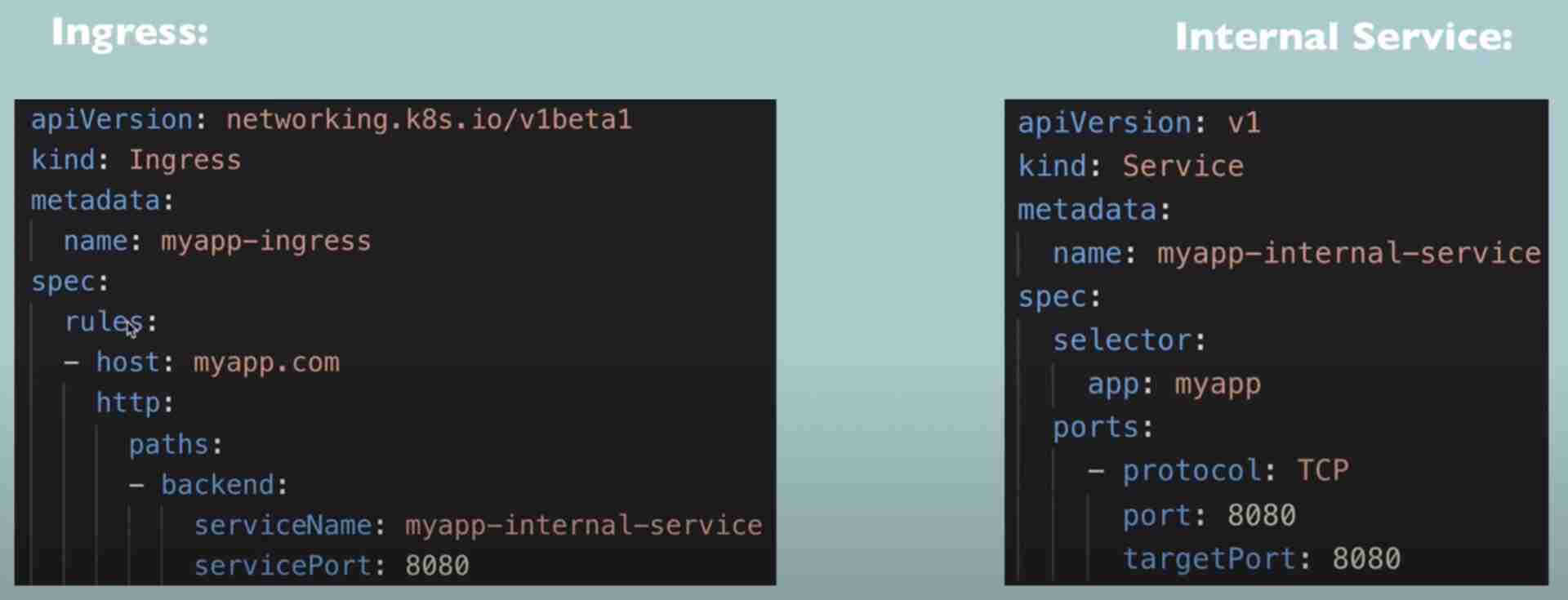

Ingress & Internal Service Setup

- ServiceName - name of the internal service - ServicePort - port on which the internal service is available

Ingress Controller

• A pod or a set of pods that act as the entry point to the cluster and evaluate ingress rules & manage redirections
• Ingress component cannot do anything by itself, it needs an ingress controller which is an implementation for ingress component.
• Example:
  • K8s Nginx Ingress Controller
  • 3rd party
• Image
  •

Setup & Configuration

• On Cloud
  • Cloud provider's load balancer acts as the entry point and forwards request to ingress controller (managed solution, minimal effort)
  • Image
    •
• On Premise
  • Need to configure entry point ourselves
  • External proxy server (hardware or software) acting as the entry point (has external IP address)
  • None of the nodes in the cluster have external IP addresses (for security)
  • Image
    •

Default Backend in Ingress

• If a request does not match any rule, the ingress controller redirects it to the default-http-backend service. If it doesn't exist, 404 error is returned.
• This is useful to display a custom "Page doesn't exist" error message.
• Default backend can be created by creating a pod with the same name as the default http backend and on the same port.
• Image
  •

Routing to multiple paths

Routing to multiple subdomains

Configuring TLS Certificate

• TLS Certificate has to be created as a secret in the same namespace as the ingress
• Ingress uses the TLS certificate as a reference from the secret

Resources
